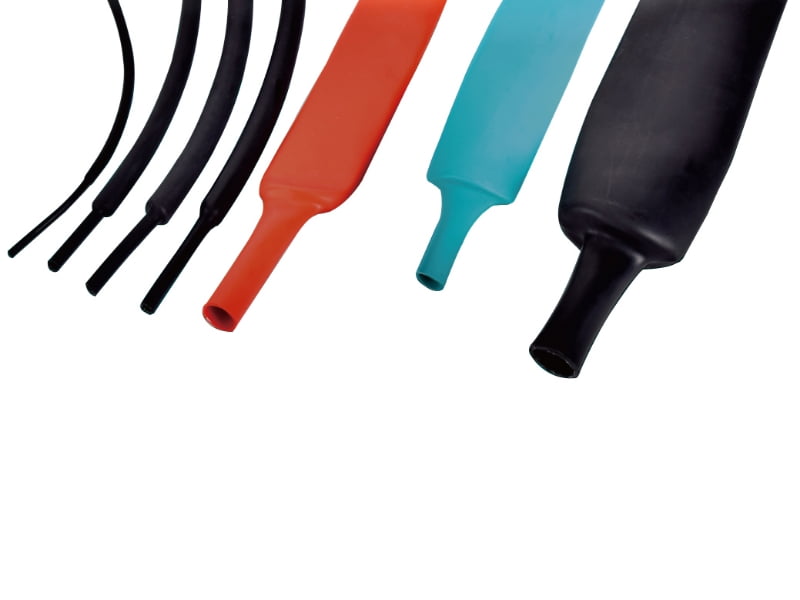

What Is Dual Wall Heat Shrink Tube?

Dual Wall Heat Shrink Tube is a high-performance heat-shrinkable tubing solution designed to provide electrical insulation, mechanical protection, and environmental sealing for cables, wires, terminals, and other components. Its dual-layer structure combines an outer protective layer with an inner adhesive layer, allowing the tube to shrink tightly around the application while forming a sealed barrier.

As a professional manufacturer and supplier of heat shrink products, we provide reliable solutions for electrical, cable, telecommunications, automotive, industrial, and other applications. In addition to Dual Wall Heat Shrink Tube, our product range can include Heat Shrink Cap and Heat Shrink End Cap solutions for protecting exposed component ends.

What Is Dual Wall Heat Shrink Tube?

Dual Wall Heat Shrink Tube, also known as double wall heat shrink tubing, consists of two layers. The outer layer provides mechanical and electrical protection, while the inner adhesive layer melts when heated and bonds to the surface of the protected component.

When heat is applied, the tube contracts around the cable, wire, or component. At the same time, the inner adhesive flows and fills gaps between the tubing and substrate, helping create a sealed and protected connection.

This dual-layer construction makes Dual Wall Heat Shrink Tube suitable for applications where standard single-wall heat shrink tubing does not provide sufficient environmental sealing.

Dual Wall Heat Shrink Tube Structure

The two layers of the tubing perform different functions.

Outer Protective Layer

The outer layer is designed to provide electrical insulation and mechanical protection. After shrinking, it forms a durable protective covering around the underlying component.

Inner Adhesive Layer

The inner layer contains heat-activated adhesive. During installation, the adhesive softens and flows as the tube is heated. After cooling, it helps create a tight seal around the cable, wire, terminal, or other substrate.

The combination of these layers provides both physical protection and environmental sealing.

Features of Dual Wall Heat Shrink Tube

Dual Wall Heat Shrink Tube is designed for applications requiring more than basic insulation.

Dual-Layer Construction

The combination of an outer protective layer and inner adhesive layer provides multiple levels of protection in one product.

Environmental Sealing

When correctly installed, the adhesive lining helps reduce the penetration of moisture, dust, and other contaminants.

Electrical Insulation

The outer heat-shrinkable layer provides insulation around wires, cables, terminals, and electrical connections.

Mechanical Protection

The tubing can help protect covered components from abrasion and other external mechanical exposure.

Strong Adhesive Bond

The heat-activated adhesive helps the tubing conform to irregular surfaces and creates a close seal after cooling.

Wide Range of Applications

Dual Wall Heat Shrink Tube can be used in electrical systems, cable assemblies, automotive wiring, industrial equipment, telecommunications, and other applications.

Dual Wall Heat Shrink Tube Applications

Dual Wall Heat Shrink Tube is widely used where electrical insulation and environmental protection are required.

Cable and Wire Protection

The tubing can be used to protect cable joints, wire connections, terminals, and exposed sections of electrical assemblies.

Automotive Wiring

Automotive wiring systems can be exposed to vibration, moisture, temperature changes, and contaminants. Dual wall heat shrink tubing can provide additional insulation and sealing for suitable wiring applications.

Electrical Connections

For electrical terminals and connections, the tubing can provide insulation while helping protect the connection from environmental exposure.

Telecommunications

Cable assemblies used in telecommunications can benefit from additional sealing and mechanical protection provided by adhesive-lined heat shrink tubing.

Industrial Equipment

Industrial electrical systems may operate in demanding environments. Dual Wall Heat Shrink Tube can provide an additional protective layer around suitable components and connections.

Dual Wall Heat Shrink Tube vs. Heat Shrink Cap

Although Dual Wall Heat Shrink Tube and Heat Shrink Cap are both heat-shrinkable products, they are designed for different forms of protection.

Dual Wall Heat Shrink Tube is generally supplied as a length of tubing and is used to cover cables, wires, joints, terminals, and other elongated components.

A Heat Shrink Cap, also called a Heat Shrink End Cap, is designed specifically to cover and seal the end of a cable, pipe, wire, or similar component.

For applications involving an exposed component end, a Heat Shrink End Cap may be more suitable than tubing. For longer cable sections or connections, Dual Wall Heat Shrink Tube can provide continuous coverage.

Double Wall Heat Shrink Cap

A Double Wall Heat Shrink Cap uses a similar dual-layer concept to adhesive-lined heat shrink tubing. It typically consists of an outer heat-shrinkable layer and an inner adhesive layer.

When heated, the cap shrinks around the component end while the adhesive layer flows to help create an environmental seal.

This type of High-Performance Heat Shrink Cap can be used when cable or component ends require additional protection against moisture, dust, and other environmental factors.

High-Performance Heat Shrink Cap

A High-Performance Heat Shrink Cap is designed for applications where reliable end sealing and protection are important.

Depending on the product specification, it can provide:

• Electrical insulation

• Environmental sealing

• Moisture protection

• Mechanical protection

• Protection against contamination

• Secure coverage of exposed ends

The appropriate product should be selected according to the component dimensions, operating environment, temperature requirements, and sealing requirements.

How Does Dual Wall Heat Shrink Tube Work?

The installation process begins by selecting the correct tubing size for the component. The tube should be positioned over the area requiring protection.

Controlled heat is then applied using a suitable heat source. As the temperature increases, the outer layer contracts while the inner adhesive layer softens and flows around the substrate.

Once heating is complete, the assembly is allowed to cool. The contracted outer layer provides insulation and mechanical protection, while the adhesive layer helps form a sealed interface.

Proper product selection and installation are important for achieving the intended sealing and protection performance.

Choosing a Dual Wall Heat Shrink Tube Manufacturer

When selecting a Double Wall Heat Shrink Cap Manufacturer or heat shrink tubing manufacturer, buyers should consider more than product availability.

Important factors include:

• Material consistency

• Product dimensions

• Shrink ratio

• Adhesive performance

• Temperature resistance

• Electrical insulation requirements

• Environmental sealing performance

• Available sizes

• Quality control

• Application requirements

A professional Heat Shrink Cap Manufacturer should also be able to provide suitable product specifications for different cable, wire, and component applications.

Double Wall Heat Shrink Cap Supplier

Working with an experienced Double Wall Heat Shrink Cap Supplier can help customers source heat shrink products for different applications from one supplier.

Whether you need Dual Wall Heat Shrink Tube for cable assemblies or a Double Wall Heat Shrink Cap for protecting exposed ends, the product should be selected according to the specific dimensions and working environment.

For bulk purchasing and industrial applications, customers can provide their required dimensions, material requirements, application conditions, and other specifications to identify a suitable solution.

Frequently Asked Questions

What is Dual Wall Heat Shrink Tube?

Dual Wall Heat Shrink Tube is a two-layer heat-shrinkable tube with an outer protective layer and an inner adhesive layer. It is commonly used for electrical insulation, mechanical protection, and environmental sealing.

What is the difference between single wall and dual wall heat shrink tubing?

Single wall heat shrink tubing generally provides insulation and mechanical protection, while dual wall tubing adds an inner adhesive layer that can help create a sealed interface around the protected component.

What is a Heat Shrink End Cap used for?

A Heat Shrink End Cap is designed to cover and seal the end of a cable, wire, pipe, or similar component, helping protect the exposed end from environmental conditions.

Is a Heat Shrink Cap the same as Dual Wall Heat Shrink Tube?

No. They are related heat-shrinkable products but have different forms and applications. Dual Wall Heat Shrink Tube is supplied as tubing for covering sections of components, while a Heat Shrink Cap is designed to cover and seal an end.

What is a Double Wall Heat Shrink Cap?

A Double Wall Heat Shrink Cap is an end cap with an outer heat-shrinkable layer and an inner adhesive layer. It is designed to provide insulation, protection, and sealing for exposed component ends.

How do I choose a Heat Shrink Cap Manufacturer?

Consider the manufacturer's material quality, product specifications, dimensional consistency, adhesive performance, available sizes, quality control, and ability to meet your specific application requirements.
