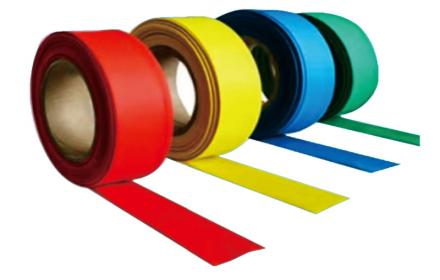

Bus-bar Shrinkable Protection Tube (BSPT) is a tubular material used to protect electrical buses. It provides insulation, mechanical protection and environmental resistance to electrical buses by shrinking the tube through heat shrinking technology so that it is tightly wrapped around the electrical bus. This type of protective tubing is widely used in electrical engineering, communications, automotive and industrial equipment.
Bus-bar Shrinkable Protection Tubes are important in a number of areas:
1. Power Distribution: Used for bus protection in power systems to ensure electrical safety and stability.
2. Communication equipment: Provide insulation protection in communication equipment to prevent electrical interference.
3. Automotive industry: Used in automotive electrical systems to protect cables and buses from physical damage and environmental influences.
4. Industrial equipment: Provide reliable protection for electrical connections in industrial equipment to extend the service life of the equipment.
Materials and Specifications of Bus-bar Shrinkable Protection Tube
Bus-bar Shrinkable Protection Tubes are typically made from the following materials:
1. Polyolefin (PO): has good insulating properties and heat resistance.
2. Fluoroplastic: For applications requiring high temperature and chemical resistance.
3. Silicone: for high temperature and high voltage environments.
In terms of specifications, the diameter, length and shrinkage ratio of the protective tubing can be selected according to specific needs. Common shrinkage ratios are 2:1, 3:1 and 4:1. Choosing the right shrinkage ratio can ensure a good fit with the bus.
Features and Benefits of Bus-bar Shrinkable Protection Tube
1. Excellent insulation performance: the protection tube can effectively prevent electrical leakage and short circuit, and improve the safety of the system.
2. Good mechanical protection: Provides effective physical protection for the electrical bus, preventing mechanical damage and external environmental influences.
3. Strong environmental resistance: UV resistance, chemical resistance, high temperature resistance, suitable for use in harsh environments.
4. Easy to install: Heat-shrinking process makes the installation process simple and fast, without the need for complex fixtures.
Installation and Use of Bus-bar Shrinkable Protection Tube
Installation of the Bus-bar Shrinkable Protection Tube consists of the following steps:
1. Preparation:Clean the surface of the bus to ensure that there is no dust, grease or other dirt.
2. Select Tube Diameter:Select the appropriate protection tube size according to the diameter of the bus.
3. Heat Shrinkage:Put the protection tube over the bus and heat it with a hot air gun or other heating tool to shrink and tightly wrap the bus.
4. Inspection:Make sure the Protective Tube shrinks evenly, with no air bubbles or incomplete shrinkage.
Common Problems and Solutions
1. Uneven shrinkage:may be caused by uneven heating temperature or insufficient time. Make sure that the heating is even and the temperature is properly controlled.
2. Rupture of the protection tube:it may be caused by the quality of the tube or improper operation during installation. Choosing high quality materials and paying attention to proper installation can avoid this problem.
Future development trend
With the development of technology, the material and process of bus shrinkage protection tube are also improving. In the future, there may be more high-performance protection tubes with better environmental resistance, higher insulation properties and more convenient installation methods.
