Electric vehicles (EVs) are revolutionizing the automotive industry by offering cleaner, more efficient alternatives to traditional gasoline-powered cars. At the heart of every electric vehicle lies its power distribution system, which relies on the efficient transmission of electricity from the battery pack to various components like motors, inverters, and other electrical systems. One key component that plays a crucial role in ensuring the safety and reliability of this electrical system is the busbar insulation sleeve.

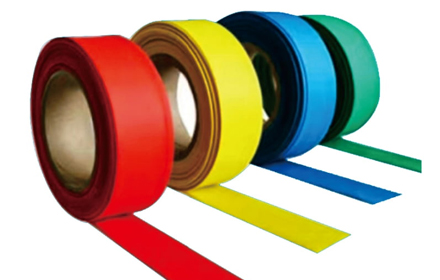

Busbars are conductive strips or bars that carry electrical power within a vehicle's power system, connecting different parts of the circuit. Due to the high-voltage nature of EV battery packs and their critical role in the powertrain, protecting the busbars with appropriate insulation is paramount. This is where Busbar Insulation Sleeves come into play. These sleeves provide a protective barrier for the busbars, ensuring that power is distributed safely, efficiently, and reliably across the entire vehicle system.
1. Ensuring Safety in High-Voltage Systems
Electric vehicles operate on high-voltage electrical systems, typically ranging from 200V to over 800V in advanced EVs. The battery pack, which stores and supplies electrical energy to the vehicle, needs to be connected to various components, including the motor, inverters, and other control systems. The busbars are the conductors that transfer electricity between these components, but because of their high current-carrying capacity, they also present a risk of electrical faults, such as short circuits or accidental contact.
Busbar Insulation Sleeves provide a crucial safety function by preventing accidental electrical contact with the busbar’s live surfaces. These sleeves prevent electrical shocks to operators or users during maintenance or assembly, offering protection to both personnel and sensitive electrical components. The insulation material also serves to reduce the risk of short circuits that could arise from external elements like moisture or dust coming into contact with the busbar.
By fully enclosing the busbars with high-quality insulation sleeves, EV manufacturers can minimize the risk of electrical accidents, thereby improving the safety of both the vehicle and the maintenance process.
2. Protecting Against Environmental Damage
Electric vehicle systems often operate in harsh environments, with temperature fluctuations, moisture, and physical wear being common challenges. The Busbar Insulation Sleeve acts as a protective shield against these environmental factors, safeguarding the busbar from damage that could impair performance.
Temperature Resistance: High-temperature resistance is a key requirement in the electric vehicle industry. Battery packs can generate significant heat during charging and discharging, and busbar insulation sleeves made from silicone rubber or fluoropolymer materials are ideal for these applications due to their ability to withstand high temperatures without degrading.
Chemical and Moisture Resistance: EVs are exposed to various chemicals (e.g., battery fluids, coolant systems) and moisture (especially in outdoor environments or wet conditions). Busbar insulation sleeves, particularly those made from materials like PVC or fluoropolymer, provide resistance against these elements, preventing corrosion or degradation that could affect the busbar's performance.
By providing a protective layer against these environmental challenges, insulation sleeves ensure that busbars maintain their integrity and function over the long term, reducing the need for maintenance and enhancing vehicle reliability.
3. Efficient Power Distribution
The efficiency of an electric vehicle's power system is directly linked to how effectively the electrical components, especially the battery, motor, and inverter, are connected and powered. Busbar insulation sleeves play a vital role in maintaining the efficiency of these systems.
Optimal Power Flow: The insulation sleeves ensure that busbars are securely insulated and positioned correctly, allowing for maximum power flow without loss. Proper insulation helps prevent leakage currents and energy wastage, thus improving the overall energy efficiency of the EV’s power system.
Heat Dissipation: In addition to protecting against heat-related damage, certain insulation materials also have good heat dissipation properties, which helps maintain the busbars’ temperature within safe limits. This is particularly important when the vehicle’s systems are under heavy load or during rapid charging, as excessive heat can affect both the busbars and surrounding components.
By ensuring that busbars remain insulated and operating efficiently, the insulation sleeves contribute to the overall energy efficiency and performance of the vehicle.
4. Customization for Specific EV Applications
One of the key advantages of busbar insulation sleeves in electric vehicles is their customizability. EV manufacturers often have specific requirements for insulation based on the type of vehicle, its battery capacity, the voltage levels, and the intended operating environment. Busbar insulation sleeves can be tailored to meet these requirements:
Size and Shape: Insulation sleeves can be customized to fit the precise dimensions of busbars used in different EV models, ensuring a snug fit and full protection.
Material Selection: Depending on the specific needs of the EV’s electrical system, materials with varying levels of voltage rating, temperature tolerance, and chemical resistance can be chosen. For example, high-performance vehicles may require sleeves made from advanced materials like fluoropolymers or silicone, which provide superior insulation properties for high-voltage and high-temperature applications.
Shrink Ratio: Some insulation sleeves are heat-shrinkable, making them easy to install and ensuring they conform tightly to the busbar. This shrinkage helps in providing a perfect fit and reduces the risk of movement or loosening over time.
5. Enhancing Vehicle Longevity and Reducing Maintenance Costs
One of the key benefits of using busbar insulation sleeves in electric vehicles is their contribution to the overall longevity of the vehicle's electrical systems. By protecting busbars from external damage, environmental wear, and electrical faults, these sleeves reduce the likelihood of failures or the need for costly repairs.
Extending Battery Life: Busbar insulation sleeves contribute to the safe and efficient charging and discharging of the battery, which directly impacts the battery life. Overheating or short-circuiting caused by exposed busbars can damage the battery cells, but insulation sleeves prevent these issues.
Reduced Downtime: The added protection from insulation sleeves means less frequent maintenance and fewer repairs, allowing for increased uptime for the vehicle and lower operational costs.
As the electric vehicle industry continues to grow and evolve, the demand for safe, reliable, and efficient power distribution systems becomes ever more critical. Busbar insulation sleeves are an essential component in meeting these demands. They provide electrical safety, environmental protection, and power efficiency, ensuring that the busbars remain in optimal condition and contribute to the overall performance of the EV’s powertrain. Customizable to meet specific vehicle needs, these sleeves play a crucial role in extending the lifespan of the vehicle’s electrical systems, reducing maintenance costs, and improving the reliability of electric vehicles, ultimately driving the transition toward a greener, more efficient automotive future.
