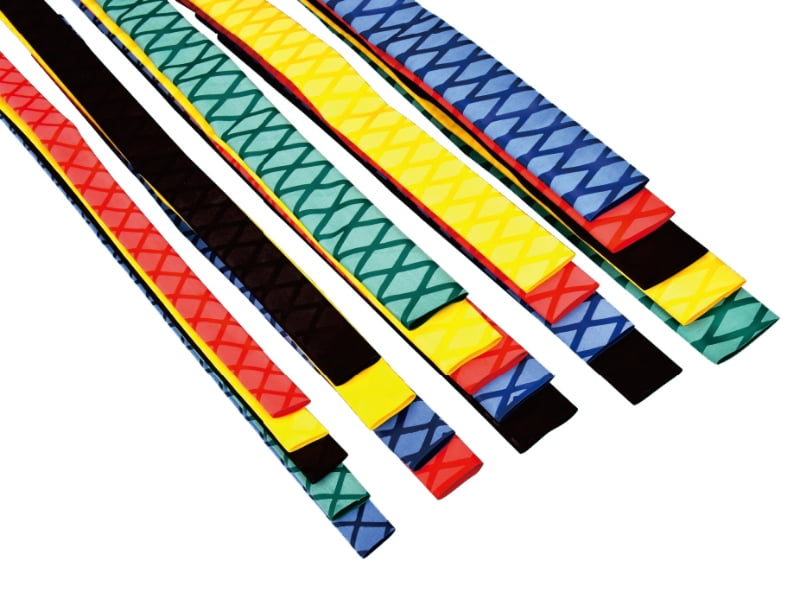

Pattern Heat Shrink Tube

Pattern heat Shrink Tube is a heat Shrink Tube with pattern design. It is usually made of high-quality heat-shrinkable material and has a double-wall construction. The Pattern Heat Shrink Tube is an advanced protective solution designed for various applications in electrical, automotive, and industrial settings. Made from high-quality thermoplastic materials, this heat shrink tubing is engineered to provide a snug fit, excellent insulation, and durability. Its unique patterns enhance visibility and identification, making it an essential tool for professionals and DIY enthusiasts alike.

Characteristics

• Thermal shrinkage rate: 2:1

• Initial shrinkage temperature:>+60 ℃

• Fullshrinkage temperature:>+105'℃，Use temperature:-55℃~+110℃

• Soft,fast shrinkage, anti-skid and beautiful

• Environmental protection standard:RoHSstandard color: black,red,yellow, green, blueand other fields

Key Features

1. High-Quality Material

• Thermoplastic Construction: Made from premium thermoplastic polymers that offer excellent heat resistance, chemical resistance, and electrical insulation.

• Durability: The material is designed to withstand harsh environments, ensuring long-term protection for cables and components.

2. Effective Shrinking Ratio

• Standard Shrinkage: The tubing typically features a shrinking ratio of 2:1 or 3:1, allowing it to tightly conform to various shapes and sizes, providing a secure fit.

3. Patterned Design

• Enhanced Visibility: The patterned surface not only adds aesthetic appeal but also aids in easy identification of different wires and connections, reducing the risk of confusion during installations or repairs.

4. Temperature Resistance

• Wide Temperature Range: The tubing can operate effectively within a wide temperature range, usually from -40°C to +125°C (-40°F to +257°F), making it suitable for various applications.

5. Electrical Insulation

• Superior Insulation Properties: Provides excellent electrical insulation, reducing the risk of short circuits and electrical failures.

6. Water and Chemical Resistance

• Protective Barrier: The heat shrink tube acts as a barrier against moisture, dust, and chemicals, ensuring that cables and connections remain protected in challenging environments.

7. Easy Installation

• Heat Activation: Simply apply heat using a heat gun or similar tool to activate the shrinkage process, ensuring a tight and secure fit around cables and components.

8. Versatile Applications

• Multiple Uses: Suitable for a wide range of applications, including automotive wiring, electrical insulation, harnessing, and protecting sensitive components in industrial equipment.

Technical Specifications

• Material: Thermoplastic polymer

• Shrink Ratio: 2:1 or 3:1 (varies by product)

• Operating Temperature: -40°C to +125°C (-40°F to +257°F)

• Color Options: Available in various colors and patterns for easy identification and organization.

Applications

• Electrical Wiring: Ideal for insulating and protecting electrical connections and joints.

• Automotive: Used in automotive wiring harnesses to provide protection against abrasion and environmental factors.

• Industrial Equipment: Protects sensitive components in industrial machinery from dust, moisture, and chemicals.

FAQ：

What is a Pattern Heat Shrink Tube?
It is a protective tubing made from thermoplastic materials that shrinks when heated, providing insulation and protection for cables and connections.

What are the primary materials used in the construction of the heat shrink tube?
The tubing is typically made from high-quality thermoplastic polymers known for their durability and electrical insulation properties.

What is the standard shrink ratio for Pattern Heat Shrink Tubes?
The standard shrink ratio is usually 2:1 or 3:1, allowing it to conform tightly to various shapes.

What temperature range can Pattern Heat Shrink Tubes operate in?
They typically operate effectively within a temperature range of -40°C to +125°C (-40°F to +257°F).

How does the patterned design benefit users?
The patterned surface enhances visibility and aids in easy identification of different wires and connections, reducing confusion during installations.

What are some common applications for Pattern Heat Shrink Tubes

They are used in electrical wiring, automotive wiring harnesses, and protection of sensitive components in industrial equipment.

How is the heat shrink tube installed?

Installation involves placing the tube over the desired area and applying heat using a heat gun, which activates the shrinkage process.

Is the Pattern Heat Shrink Tube resistant to moisture?
Yes, it provides a protective barrier against moisture, dust, and chemicals, ensuring that cables and connections remain secure.

Can the heat shrink tube be used for high-voltage applications?
Yes, depending on the specifications, many heat shrink tubes are designed to provide excellent electrical insulation for high-voltage applications.

Are there different color options available for the Pattern Heat Shrink Tube?
Yes, they are available in various colors and patterns, allowing for easy identification and organization of wires and connections.
