Corrugated Pipe is a pipe with a wavy surface, usually made of plastic, PP, or nylon,PE. Its corrugated structure gives the pipe greater flexibility and stiffness while keeping its weight low. Corrugated pipes are widely used in drainage systems, exhaust systems, cable protection and other fields. Its wavy design increases the surface area of the pipe, improving pressure resistance and impact resistance. corrugated pipes are easy to install and usually require only a simple insertion or connection. In irregular or tortuous terrain, corrugated pipes adapt better. Due to its corrosion resistance, light weight and economical and practical characteristics, corrugated pipes are widely used in construction, engineering and agricultural fields.
Structuer(PP material)
Material:polypropylene(PP)
Temperature range:-20℃~100℃
Color: black, gray, oil resistant, acid and alkali resistant. The protection grade lP.6.8wave tube is mainly used in mechanica equipment, automobile and other industries to protect wire harnesses, cables and wires.We can producesplit wave tube according to customer requirements.
Structure(PA6 material)
Material:nylon
Temperature range:-40 ℃~115℃
Color: black, gray,without halogen, oil resistance, acid and alkali. The wave tube with protection grade of lP6 8
Mainly used: in mechanical equipment, automobile and other industries to protectWire harnesses, cables and wires.Open wave tube can be produced according to customer requirements.

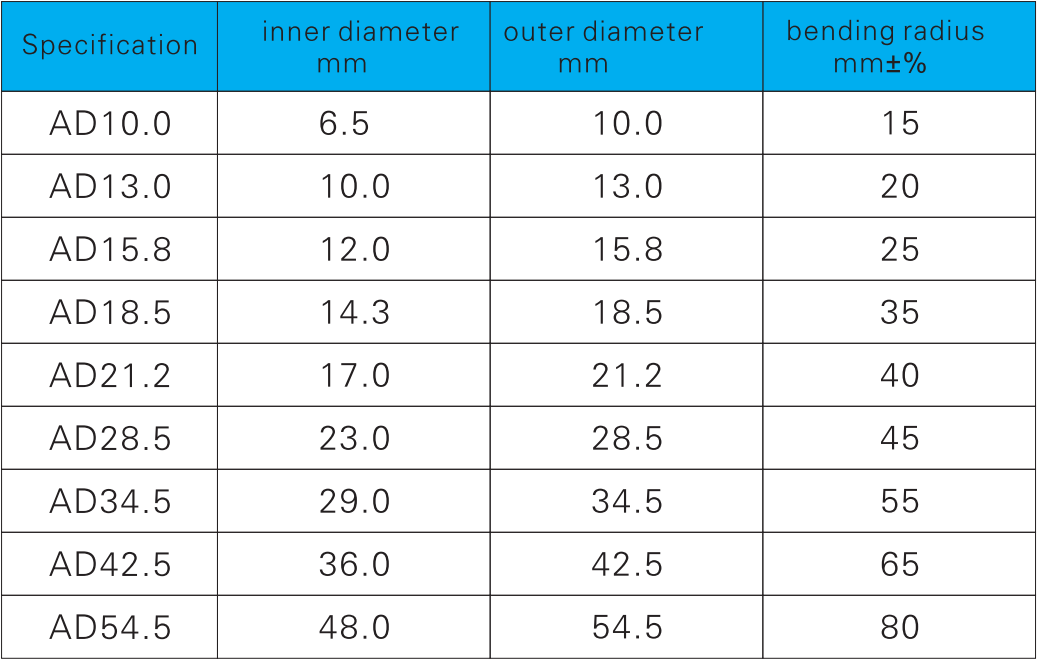

Dimension(PP)

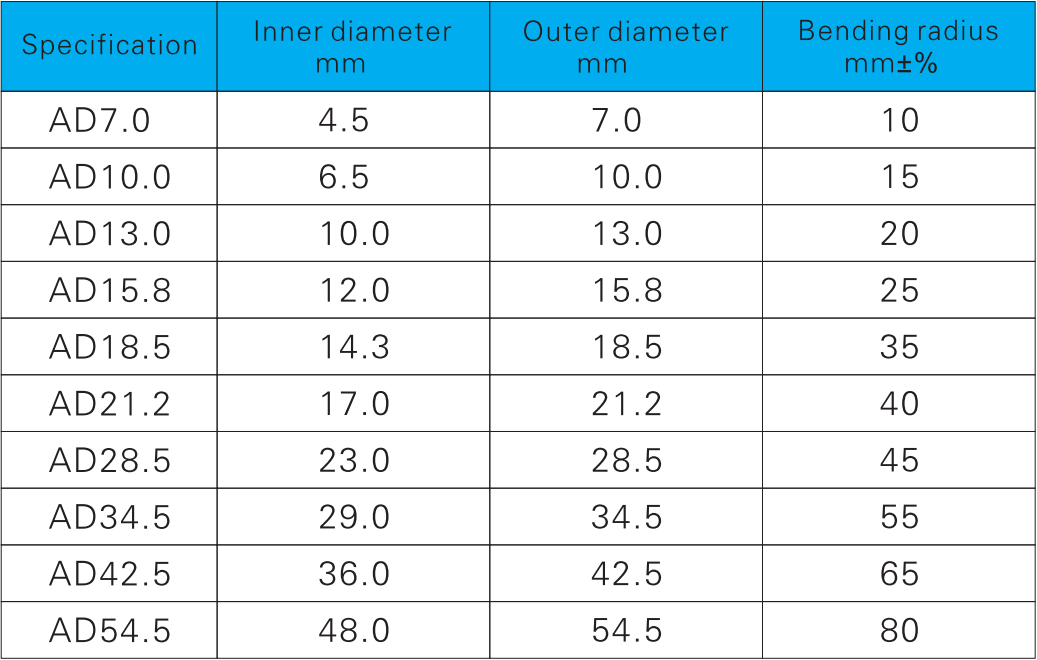

Dimension(PA6)
Dimension(PE)
Applications of Corrugated Pipes
Drainage Systems:
Corrugated pipes are commonly used for stormwater and sewage drainage systems. The flexible nature of the pipes allows them to be easily installed in uneven or difficult-to-reach areas, helping to prevent water pooling and ensuring efficient water flow.
Electrical Conduits:
In electrical applications, corrugated pipes are used to protect wires and cables from external damage. Their flexible design makes them ideal for routing electrical cables in both commercial and residential buildings.
Cable Protection:
Similar to electrical conduits, corrugated pipes are used in telecommunications, data centers, and other installations that require the protection of cables from physical damage, moisture, and extreme temperatures.
Industrial Applications:
In industries such as construction, agriculture, and mining, corrugated pipes are used for venting systems, irrigation, and handling of hazardous materials. The strength and flexibility of these pipes allow them to be used in demanding environments.
Automotive and Transportation:
Corrugated pipes are also used in automotive and transportation sectors for fuel lines, air ducts, and vent systems, where flexibility and resistance to high pressure and temperature are required.
Benefits of Corrugated Pipes
Cost-Effective:
Corrugated pipes are relatively inexpensive compared to rigid piping systems, offering an affordable solution for both residential and commercial applications.
Ease of Installation:
Their lightweight and flexible design make them easy to install, even in difficult or confined spaces. Installation can often be done quickly, reducing labor costs and time.
Durability:
Made from high-quality materials, corrugated pipes are designed to withstand harsh conditions such as chemicals, high temperatures, and physical stress, offering a long lifespan and minimal maintenance.
Environmental Impact:
Many corrugated pipes are made from recyclable materials, such as HDPE, making them an environmentally-friendly option.
Impact Resistance:
The corrugated structure enhances the pipe’s impact resistance, making it ideal for applications where the pipe might be subjected to physical stresses or external pressures.
FAQ:
What is corrugated pipe?
Corrugated pipe is a kind of pipe with corrugated structure, usually made of metal or plastic, with good flexibility, pressure resistance and corrosion resistance, widely used in drainage, cable protection, water supply and ventilation.
What are the main materials of corrugated pipe?
The main materials of corrugated pipes include metal (e.g. stainless steel, aluminum alloy, copper) and plastic (e.g. polyethylene PE, polypropylene PP, polyvinyl chloride PVC).
What are the applications of corrugated pipes in electronic and electrical insulation?
Applications for corrugated pipes in electronic and electrical insulation include wire and cable protection, joint and terminal wrapping, providing insulation to protect against electrical faults and short circuits.
Why is corrugated pipes suitable for drainage systems in construction?
Corrugated pipe is suitable for drainage systems in construction projects because it has the advantages of good pressure resistance, corrosion resistance, easy installation, etc. It is able to adapt to various environmental conditions and ensure the long-term stable operation of the drainage system.
What are the applications of corrugated pipes in municipal engineering?
In municipal engineering, corrugated pipes are mainly used in sewage pipes and water supply pipes. They are characterized by corrosion resistance, abrasion resistance and long service life, and are suitable for complex urban drainage and water supply systems.
What is the role of corrugated pipe in agricultural irrigation?
The role of corrugated pipes in agricultural irrigation includes transmission and drainage pipes used in drip irrigation systems to ensure that water is evenly distributed to crop roots, preventing over-wetting of the soil and improving agricultural productivity.
How is corrugated pipes used in ventilation systems in industry?
corrugated pipes are used in ventilation systems in industry to ensure air circulation and discharge of harmful gases. Its high temperature resistance, chemical resistance and flexible installation make it widely used in industrial ventilation.
What are the main uses of corrugated pipes in the automotive industry?
In the automotive industry, corrugated pipes are mainly used for exhaust systems and cable protection. Metal corrugated pipes are used to connect exhaust pipes and silencers to reduce vibration and noise; plastic corrugated pipes are used to protect cables and pipelines from mechanical damage and environmental impact.
What are the installation steps for corrugated pipes?
The installation steps for corrugated pipes include cleaning the installation location, measuring and cutting the corrugated pipes, connecting the parts, and fixing the pipes. During installation, make sure the connection is tight, prevent excessive bending and avoid external impact.
How to maintain the corrugated pipes?
Maintenance of corrugated pipes includes regular inspection and cleaning. Check for wear and tear, cracks or corrosion and replace the damaged parts in time; clean the inside of the corrugated pipes to prevent clogging and accumulation of dirt to ensure its normal use.
