Silicone Rubber Heat Shrinkable Tube

Silicone rubber Heat Shrinkable Tube is a Heat Shrinkable Tube made of silicone rubber material with a double-wall structure. The inner layer often contains hot melt adhesive to provide additional sealing. Under the action of heating, the pipe will shrink and fit closely on the surface of the covered component, forming a protective layer that is resistant to high temperatures, corrosion, and has good insulation. This kind of pipe is often used in electrical, electronics, communications and other fields to insulate and protect cables, wiring harnesses and other components, and can provide reliable protection and insulation effects under harsh environmental conditions. Its high temperature resistance makes it particularly suitable for applications that need to withstand high temperature environments, such as the protection of components inside automobile engines. In addition, the flexibility and weather resistance of silicone rubber materials also make this Heat Shrinkable Tube excellent in outdoor or humid environments.

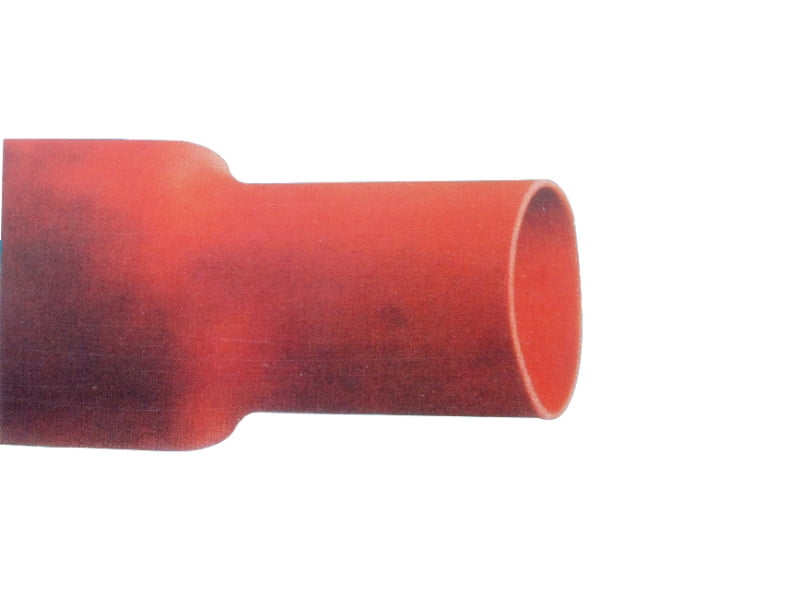

Structure

Silicone rubber shrink sleeve has the characteristics of high temperature resistance(-50 ℃~200 ℃)，corrosionresistance,high pressure resistance，and long-term use without aging.lt is widely used in aerospace,instrumentation,textile and chemical industry,food and medical treatment, electronic appliances,post and telecommunications, petroc-hemical industry,metallurgicalelectronics, railway transportation,electrical machinery,household appliances,high-rise buildings,lighting and other industries.

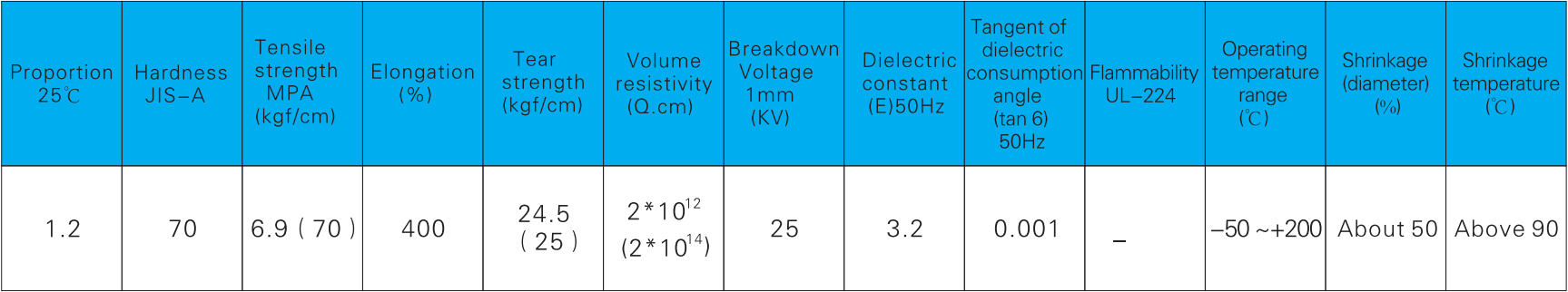

Specification

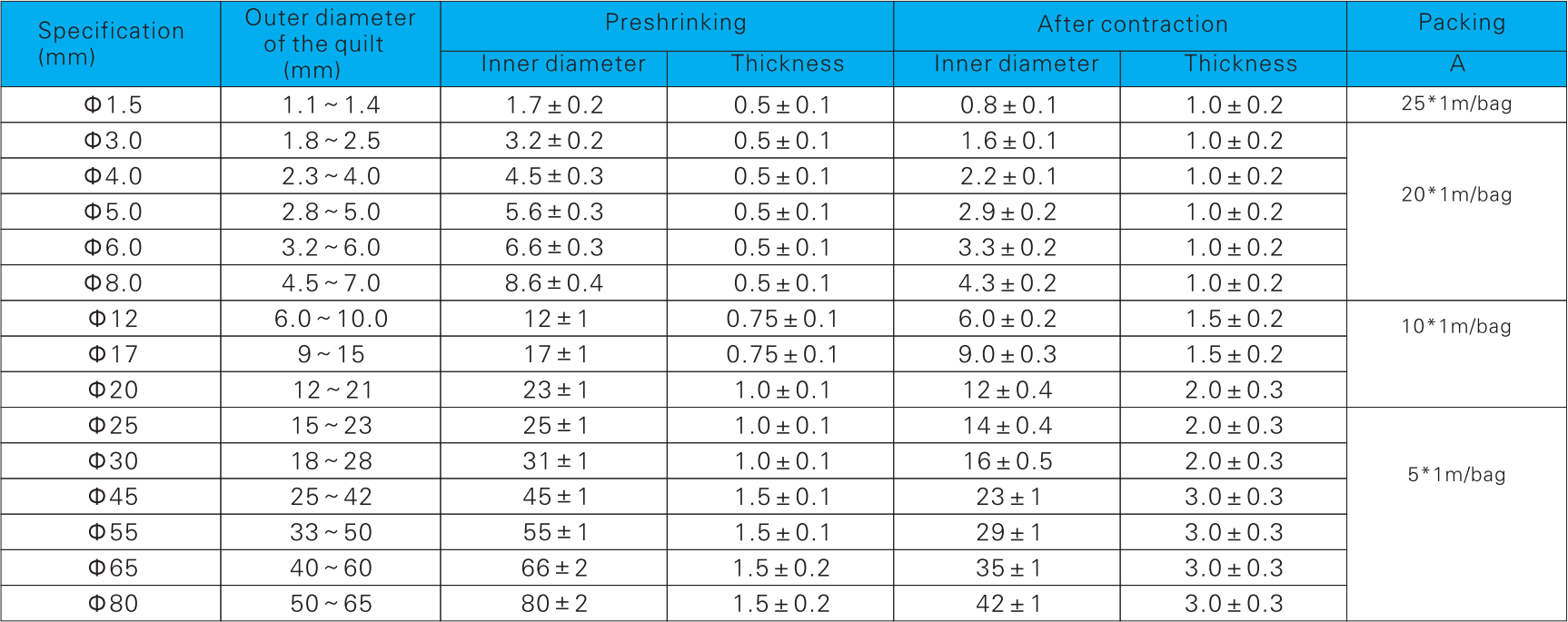

Dimension

Key Features of Silicone Rubber Heat Shrinkable Tubes

1.High Temperature Resistance:Silicone rubber can withstand extreme temperatures, typically ranging from -60°C to 200°C (-76°F to 392°F). This makes these tubes ideal for applications where heat resistance is crucial.

2.Flexible and Elastic:Silicone rubber is highly flexible and elastic, allowing the tubes to conform to irregular shapes and provide a snug fit around the objects they encase. This flexibility ensures ease of installation and adaptability to various applications.

3.Excellent Insulation Properties:These tubes offer superior electrical insulation, making them suitable for protecting wires, cables, and electrical connections from short circuits and electrical interference.

4.Chemical and UV Resistance:Silicone rubber is resistant to a wide range of chemicals, oils, and solvents. Additionally, it has excellent UV resistance, which prevents degradation when exposed to sunlight over extended periods.

5.Moisture and Weather Resistance:The tubes are designed to be waterproof and resistant to weathering, making them suitable for both indoor and outdoor applications, including environments with high humidity.

6.Shrink Ratio:Silicone rubber heat shrinkable tubes typically have a shrink ratio of 2:1, meaning they will shrink to half their original diameter when heated, providing a tight, secure fit.

Applications of Silicone Rubber Heat Shrinkable Tubes

1.Electrical Insulation:These tubes are commonly used to insulate and protect electrical wires and connections in various devices and machinery, preventing electrical shorts and enhancing safety.

2.Cable Protection:Silicone rubber heat shrinkable tubes are used to protect cables from abrasion, moisture, and chemical exposure, extending the lifespan of the cables in harsh environments.

3.Strain Relief:The tubes can be applied to connectors and joints to provide strain relief, reducing the risk of damage due to bending, pulling, or other mechanical stress.

4.Sealing and Encapsulation:These tubes are used to seal and encapsulate components in electronic devices, providing protection from dust, moisture, and other contaminants.

5.Automotive Industry:In the automotive industry, silicone rubber heat shrinkable tubes are used to protect wiring harnesses, fuel lines, and other critical components from heat, chemicals, and mechanical wear.

6.Medical Devices:Due to their biocompatibility and flexibility, these tubes are also used in medical devices to provide insulation and protection for sensitive electronic components.

Advantages of Silicone Rubber Heat Shrinkable Tubes

1.Durability:Silicone rubber is a durable material that can withstand harsh environmental conditions, ensuring long-term protection and performance.

2.Versatility:These tubes are versatile and can be used in a wide range of applications, from electrical insulation to mechanical protection and sealing.

3.Ease of Use:The heat-shrinkable property of these tubes allows for easy installation. Once heated, the tube shrinks to fit the application securely.

4.Aesthetic Appeal:Silicone rubber heat shrinkable tubes are available in various colors, allowing for color-coding and enhancing the appearance of wiring and components.

FAQ:

What is Silicone Rubber Heat Shrinkable Tube?

Silicone Rubber Heat Shrinkable Tube is a heat shrinkable tube made of silicone rubber with excellent heat resistance, flexibility and electrical insulation properties, widely used for electrical insulation and mechanical protection.

What are the main applications of Silicone Rubber Heat Shrinkable Tube?

The main applications of this heat shrinkable tube are insulation and protection of wires and cables, sealing and encapsulation of electronic components, protection of automotive wiring harnesses and protection of sensitive components in medical devices.

How high of a temperature can Silicone Rubber Heat Shrinkable Tube withstand?

Silicone Rubber Heat Shrinkable Tubes can typically withstand temperatures ranging from -60°C to 200°C (-76°F to 392°F) for applications in high temperature environments.

How is Silicone Rubber Heat Shrinkable Tube installed?

To install, place the tube over the object to be protected and heat the tube. The tube will shrink and wrap tightly around the object, providing strong protection and insulation.

What is the shrinkage ratio of Silicone Rubber Heat Shrinkable Tube?

This heat shrinkable tube typically has a 2:1 shrink ratio, which means it shrinks to half its original diameter to ensure a tight fit and good protection.

What are the advantages of Silicone Rubber Heat Shrinkable Tubing over other materials?

Silicone Rubber Heat Shrinkable Tubes offer better resistance to heat, UV, chemicals and weathering, in addition to excellent flexibility and electrical insulation.

Is Silicone Rubber Heat Shrinkable Tube waterproof?

Yes, Silicone Rubber Heat Shrinkable Tube is waterproof and protects electrical connections and other sensitive components from moisture.

Is Silicone Rubber Heat Shrinkable Tube suitable for outdoor environments?

Due to its excellent UV and weather resistance, Silicone Rubber Heat Shrinkable Tube is ideal for outdoor applications and can withstand the effects of sunlight and harsh climates for extended periods of time.

Is Silicone Rubber Heat Shrinkable Tube suitable for medical equipment?

Yes, Silicone Rubber Heat Shrinkable Tubes are biocompatible and highly flexible, which is why they are often used in medical devices to protect electronics and other sensitive components.

What colors are available for Silicone Rubber Heat Shrinkable Tube?

Silicone Rubber Heat Shrinkable Tube is available in a variety of colors and can be used to color code cables and harnesses for easy identification and management.
